A48 Wrapped V Belt PIX X'SET
A48 Wrapped V Belt PIX X'SET

A48 Wrapped V Belt PIX X'SET

A48
£7.27 (EA)
£8.72 inc VAT

Deliveries
3 in Stock 24-48hrs Delivery
Product Description Additional Information Downloads & Resources

The wrapped V belt is designed to deliver efficient and reliable power transmission across a wide range of industrial and automotive applications. Its construction improves grip between the belt and pulley, helping to reduce slippage and maintain consistent performance even under higher torque conditions.

Built for durability and smooth, quiet operation, V belts are widely used to transfer power from driving pulleys to driven pulleys in automotive, industrial, agricultural and HVAC systems. Their robust design also helps minimise vibration, friction and wear during continuous operation.

Additional Information:
  • Also known as: A1220 (13x1220)
  • Length designation: Li
  • Minimum pulley diameter: 71mm
  • Belt angle: 40°
  • Temperature range: -30°C to +80°

  • Inside Length (Li) (mm): 1219.2mm
  • pitch length (LP): 1255.2mm
  • Outside length (La) mm: 1269.2mm

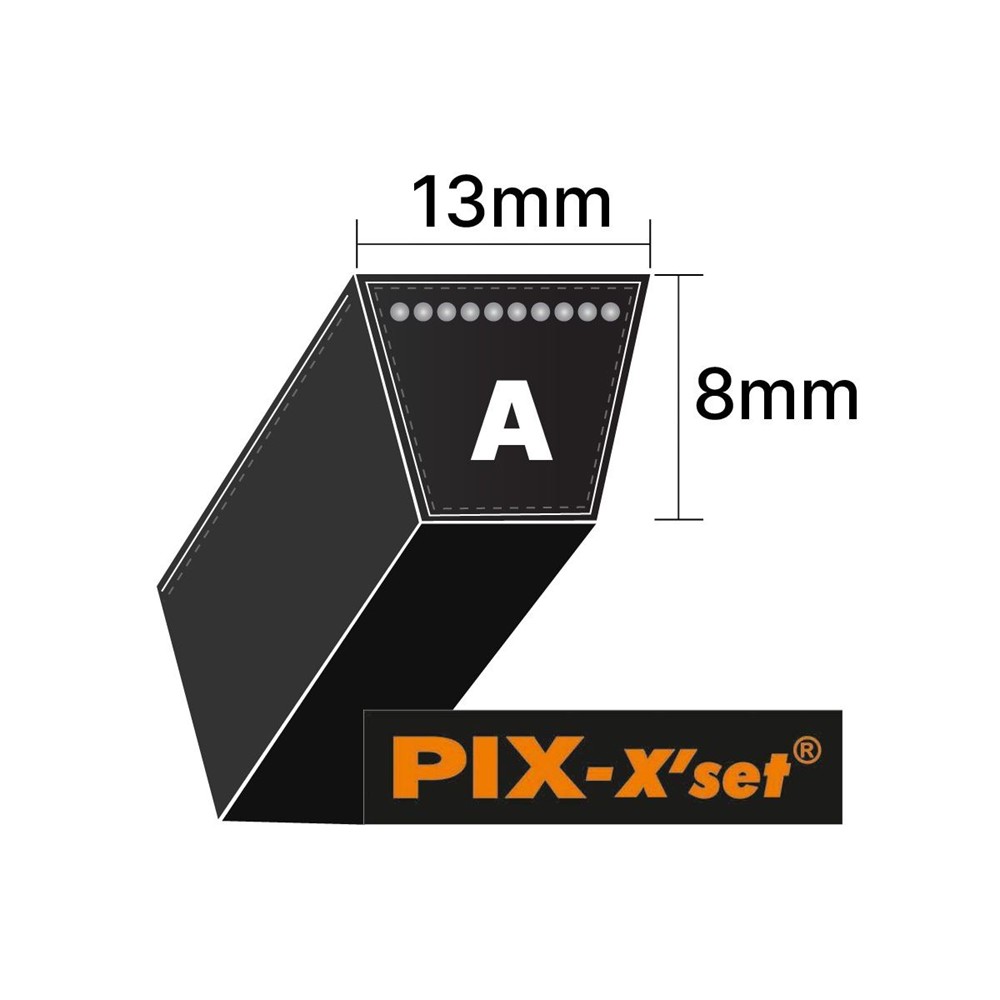

  • Thickness (Th) mm: 8mm
  • Top width (TW): 13mm
